Application:

To be used for transmission of analogue and digit signal to control in public networks and industrial plants, electrical equipment and station control circuits, where higher mechanical protection is required.

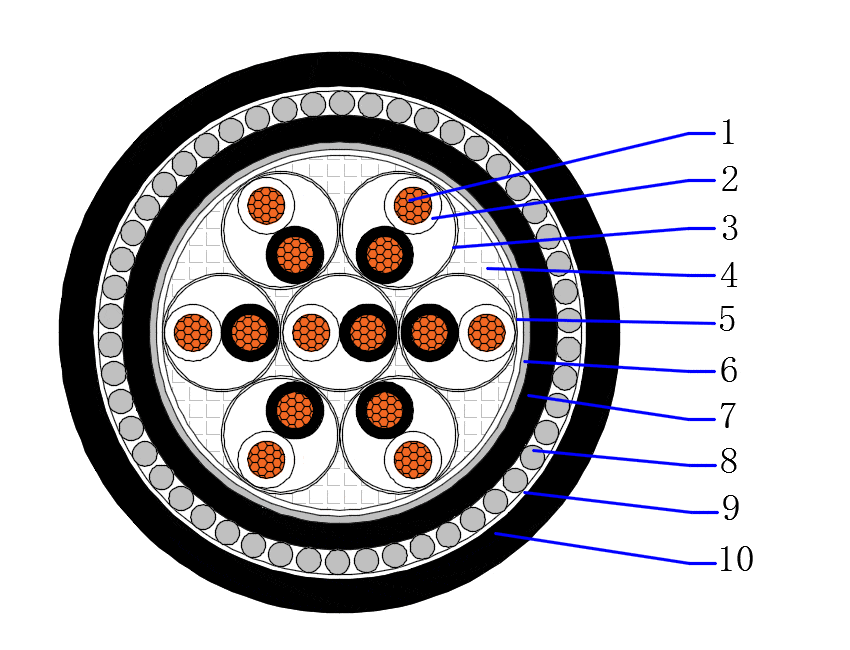

Construction:

1.    Conductor - Plain annealed class 2 stranded or class 5 flexible copper

2.    Insulation - Polyethylene (PE)

3.    Binder tape -Polyester tape

4.    Filler - Non-hygroscopic material (if necessary)

5.    Binder tape - Polyester tape

6.    Screen - Al-PET tape with tinned copper drain wire

7.    Inner sheath - Polyvinyl chloride compound (PVC)

8.    Armor - Galvanized steel wires

9.    Binder tape - Non-hygroscopic material tape

10.  Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

0.5~2.5mm2

Temperature characteristics:

Conductor operating temperature: -20℃~70℃

Min. temperatrue laying condition: 0℃

Electrical Characteristics:

Rated voltage: 500V

Core identification:

Pairs: Black and white, pairs are identified by numbers

Triples: Red, white, black, triples are identified by numbers

Sheath color:

Black or according to customer requirements

Standard:

Cable design: BS EN 50288-7

Conductor: IEC 60228 or AS/ZNS 1125
