Application:

Solar cables applies to low smoke halogen-free, flexible, single-core power cables with cross linked insulation and sheath. In particular for use at the direct current (d.c.) side of photovoltaic systems, with a nominal d.c. voltage of 1.5 kV between conductors and between conductor and earth. The cables are suitable to be used with Class II equipment. The cables are designed to operate at a normal maximum conductor temperature of 90 °C.

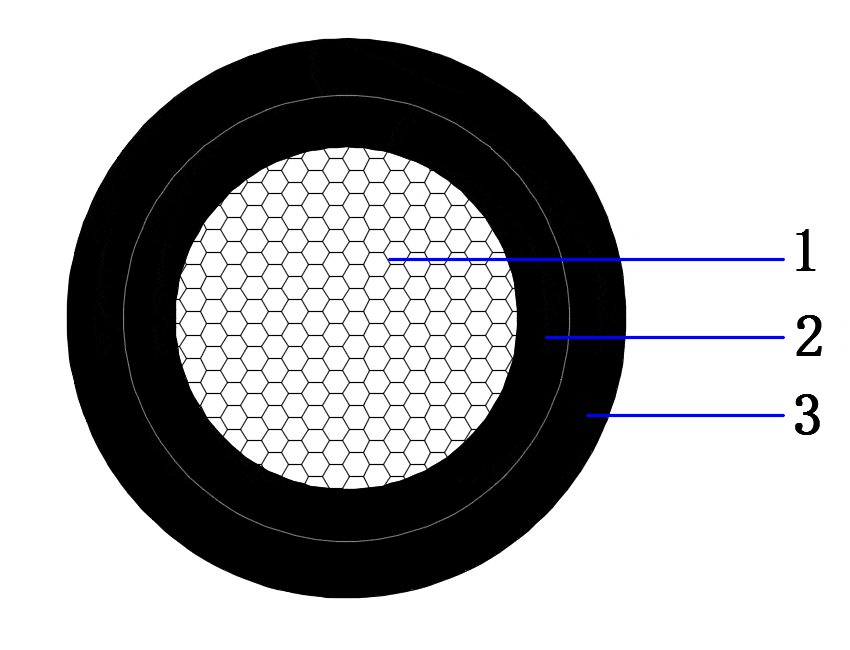

Construction:

1.    Conductor - Class 5 tinned annealed stranded copper conductor

2.    Insulation - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)

3.    Outer sheath - Low smoke halogen-free electron-beam cross-linked compounds(XLPO)

Cross Section：

1 core: 1.5~240mm2

Temperature characteristics:

Working temperature: -40℃~90℃

Max. temperature at conductor: 120℃

Short Circuit temperature: 250℃ (at max.5sec)

Electrical Characteristics:

AC：1.0/1.0 kV

DC Nominal. : 1500V（both between conductors as well as between conductors and earth）Spark Test Voltage: 6000 V AC

5min Test Voltage: 6500V

Chemical Features:

Weather / UV Resistance

Resistance mineral oil

Color:

Insulation: Black or White or as customer’s requirement

Outer sheath: Red or Black or as customer’s requirement

Standard:

EN50618

IEC60228, IEC60332

EN50305, EN50395, EN50396

HD60364
